Remote volume control & channel selector for matrix amplifier range, with Line input,Mic input

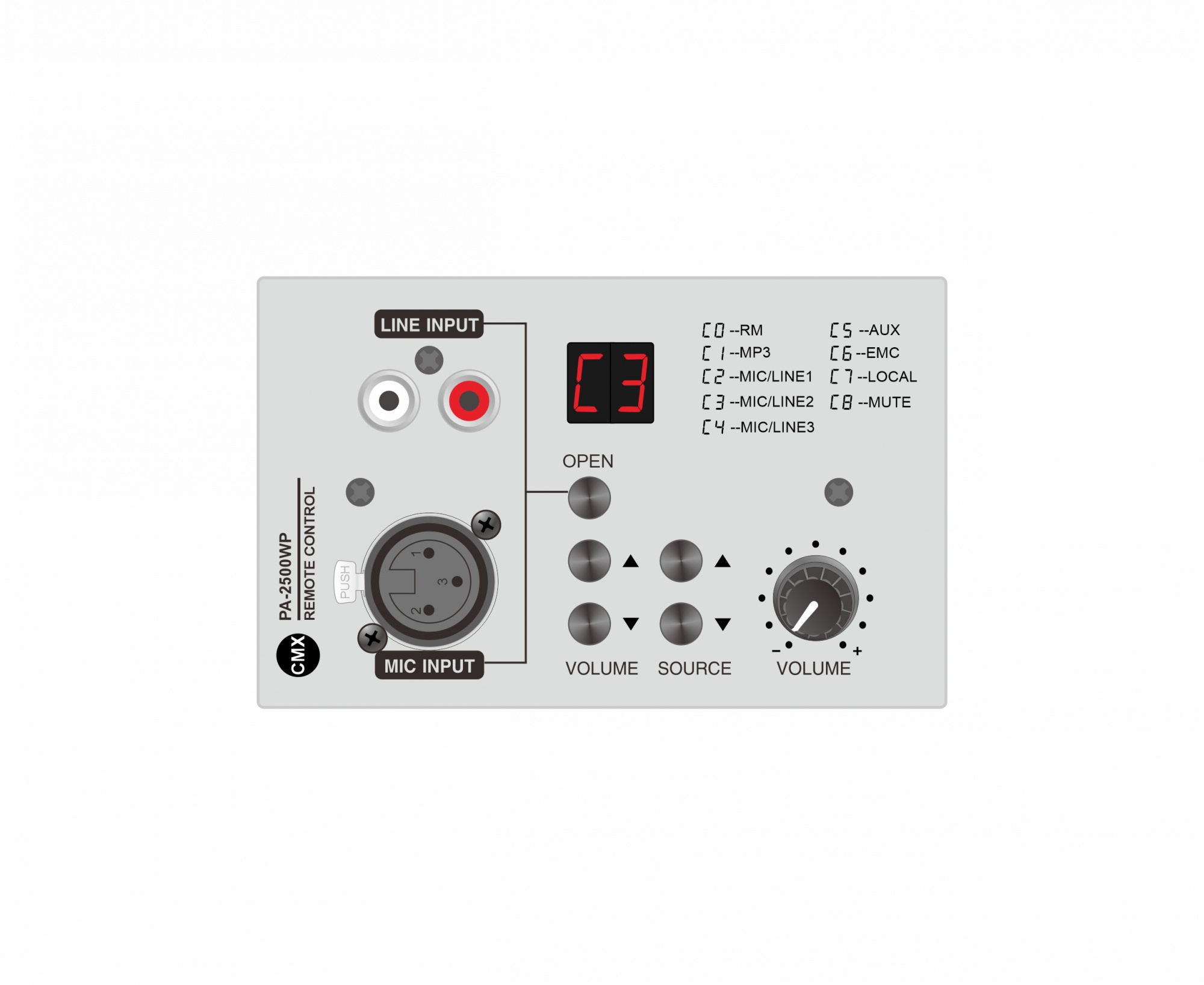

PA-2500WP is a remote in-wall controller to work exclusively with PA-2500MX series amplifier. The in-wall controller or remote control panel enable to adjust its zone output volume up and down, also it can select all inputs of the amplifier to assign it output to its zone. It is remote controller for multiple zone multiple background music system.

Features:

Communication through CAT6 cable up to 999 m
Direct power supply from matrix controller
Audio sources selection and volume control
2 units capacity for each matrix controller

Specification:

Model	PA-2500WP
Description	Remote Control Panel
Compatible Model	PA-2120MX, PA-2240MX, PA-2350MX,PA-2500MX,PA-2120MW, PA- 2240MW, PA-2350MW,PA-2500MW
Power Consumption	3W
Zone Capacity	2 zones
System Capacity	2 units in total
Line Inputs	200mv，15kΩ
Mic Input	30mv,1kΩ
Frequency Response	20hz-20khz
THD	＜1% at RMS,1KHz
S/N Ratio	>70dB
Operating Temp	-20℃ to +70℃
Power Supply	Direct from the amplifier, 24V DC, ±20%
Humidity	<95% no condensation
Dimension	120.5x85x36.5mm
Weight	0.15kg
